Phase Array is the new inspection technique that have more capability as compared to Conventional NDT (UT, RT). It can happen because Phase Array have capability in probe modification in electronic where it’s probe consist of some element’s probe. Phased Array Presentation display : A, B, C and S scan with accurate sizing.
Phase Array :
- High Speed scanning
- Improved capability
- Multiple angle inspection
- Multiple configuration
- Flexible in geometry
Application example :
Phased Array applied for Weld inspection at but weld pipe, Use of Ultrasonic
Examination in Lieu of Radiography

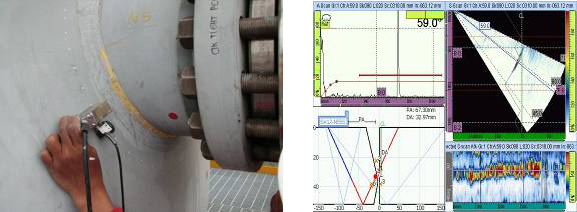

Phased Array applied for Weld inspection at Nozzle

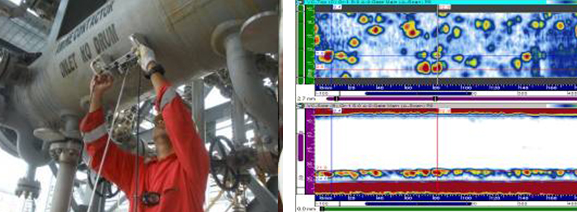

Phased Array applied for Internal Inspection
(internal conditions assessment of corrosion, coating, cladding)

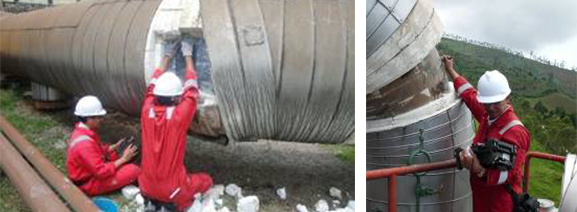

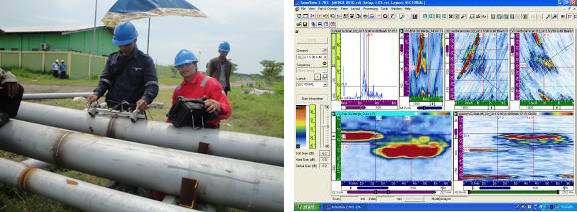

Phased Array applied for pipe condition assessment with imaging presentation
and more capability data management.

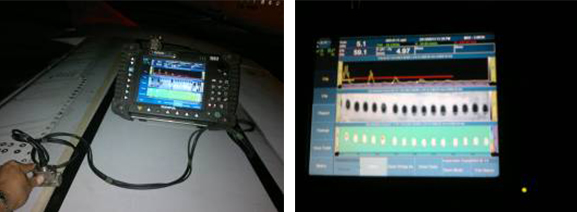

Phased Array Applied for Gas Turbine Disk and Steam Turbine Diaphragm

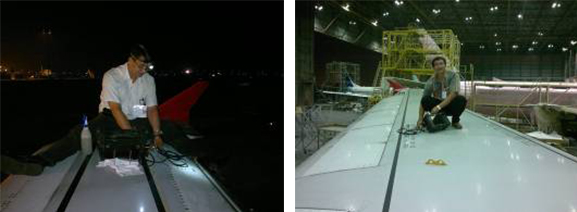

Phased Array Applied for Wing Top Skin Inspection of Airbus 320

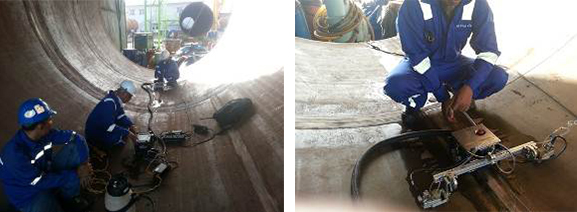

Phased Array Applied for weld of Plate Pressure Vessel Inspection,
Use of Ultrasonic Examination in Lieu of Radiography
